Horizontal Multistage Pumps
Close-coupled, horizontal-shaft, multistage self-priming centrifugal pumps. After initial filling they draw water automatically and quickly from depths of up to 8 metres; suction and discharge nozzles have female threaded connections. Available with single-phase (230 V) and three-phase (400 V) motors.
Thanks to their compact horizontal multistage design, they are a quiet and economical solution for garden and agricultural irrigation, rainwater use, washing plants and water supply in homes and small businesses. Cast iron or stainless steel casing options make them suitable for clean water.
Main Applications
- Sprinkler irrigation systems
- General irrigation systems
- Rainwater harvesting and utilisation systems
- Washing plants
- Water supply and booster set systems
Technical Data
| Max. flow rate | 8 m³/h |
|---|---|
| Min. flow rate | 0.1 m³/h |
| Max. head | 54 m |
| Min. head | 2 m |
| Max. operating pressure | 10 bar |
| Discharge nominal pressure | PN 10 |
| Fluid temperature | +5 °C … +50 °C |
| Motor power | 0.37 – 0.75 kW (2-pole) |
| Motor efficiency class | IE2 / IE3 |
| Mains frequency | 50 Hz |
| Mains voltage | 230 V (single-phase) / 400 V (three-phase) |
| Connection | Female thread |
| Suction type | Self-priming |
Material Options
| Component | Material options |
|---|---|
| Casing | Grey cast iron EN-GJL-250 or stainless steel 1.4571 (AISI 316Ti) |
| Impeller | Stainless steel, cast iron or bronze |
| Sealing | Maintenance-free mechanical seal |
Which material? A cast iron casing is the economical choice for irrigation and general clean water applications; for drinking water, rainwater and environments with a high risk of corrosion, a stainless steel casing and stainless steel impeller are recommended.
Advantages
Self-Priming
- After initial filling, draws water automatically and quickly from depths of up to 8 metres.
- Operates from wells, storage tanks or rainwater tanks without additional priming equipment.
Economical Operation
- Around 40% higher efficiency and lower energy consumption than comparable jet pumps.
- Supports the sustainable use of resources.
Low Noise Level
- Noticeably quieter operation than comparable jet pumps.
- Well suited to homes, gardens and other noise-sensitive environments.
Easy Handling
- Easily accessible priming and drain plugs for quick installation.
- The pump can be drained and shut down easily when there is a risk of frost.
Efficient Motor
- IE2 efficiency class motors; IE3 on 0.75 kW three-phase versions.
- Single-phase and three-phase motor options.

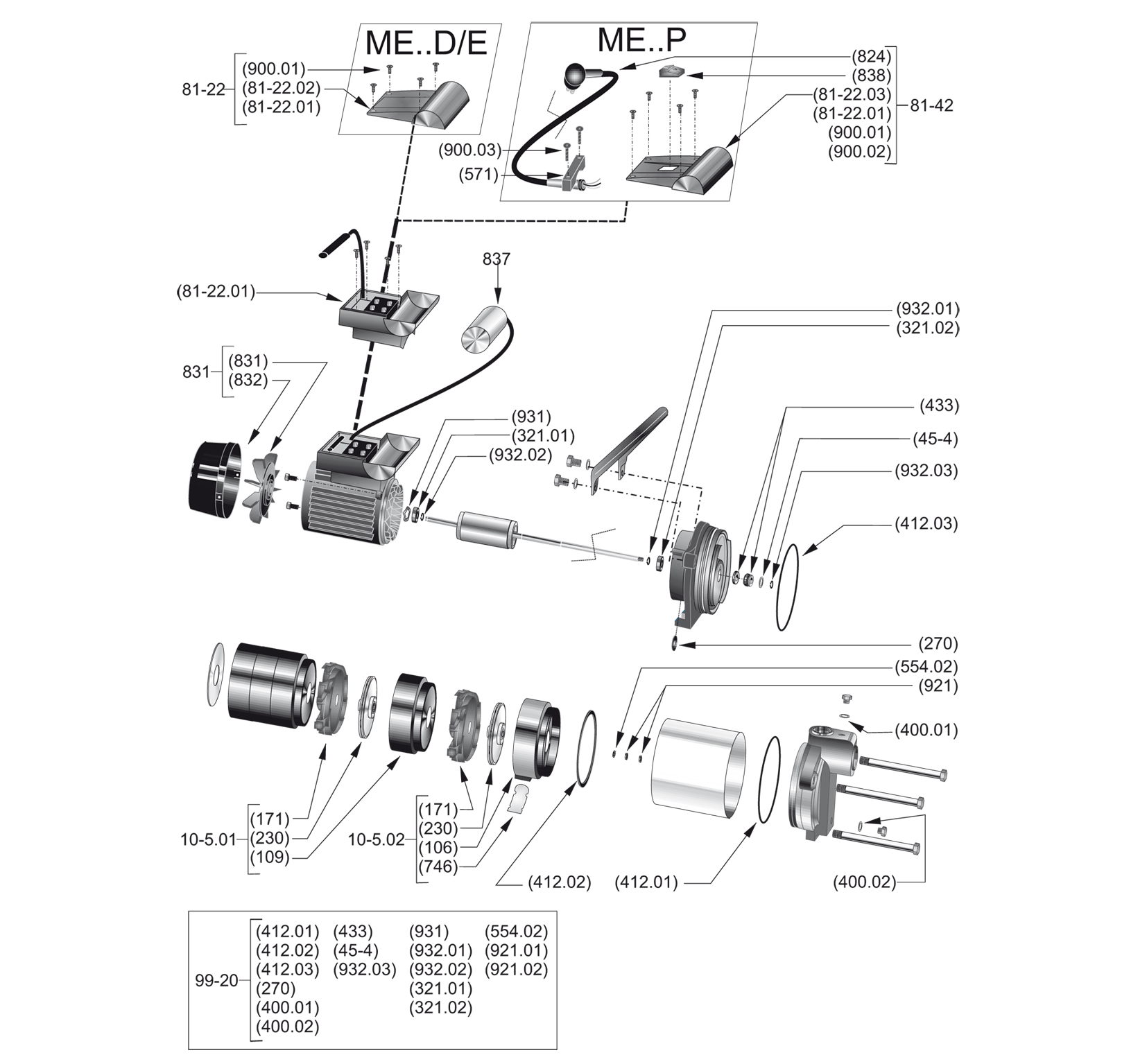

Design and Construction Features
- Multistage, self-priming hydraulic design
- Close-coupled (monoblock) pump–motor design
- Female threaded suction and discharge connections
- Easily accessible priming and drain plugs
- Maintenance-free mechanical seal
- 2-pole asynchronous motor; single-phase 230 V or three-phase 400 V
- Motor ambient conditions: -20 °C … +40 °C, up to 1000 m altitude
To choose the right model, send us your required flow rate, head, suction lift and power supply via the Request a Quote form; our technical team will specify the most suitable pump.
How to Choose
- Determine the flow rateCalculate the total water demand (m³/h) from the number of taps, sprinklers or lines used at the same time.
- Calculate head and suction liftAdd static height, pipe friction losses and the required outlet pressure; the water level must be no more than 8 m below the pump.
- Select the power supplyA single-phase 230 V motor for home and garden use, a three-phase 400 V motor for businesses.
- Select the casing materialCast iron for general clean water; stainless steel for drinking water and corrosive environments.
